corosync v2 + pacemaker + crmsh 实现mariadb高可用

中间件应用高可用

发布于：2018年2月7日

字数：1.8k 字

时长：9 分钟

[toc]

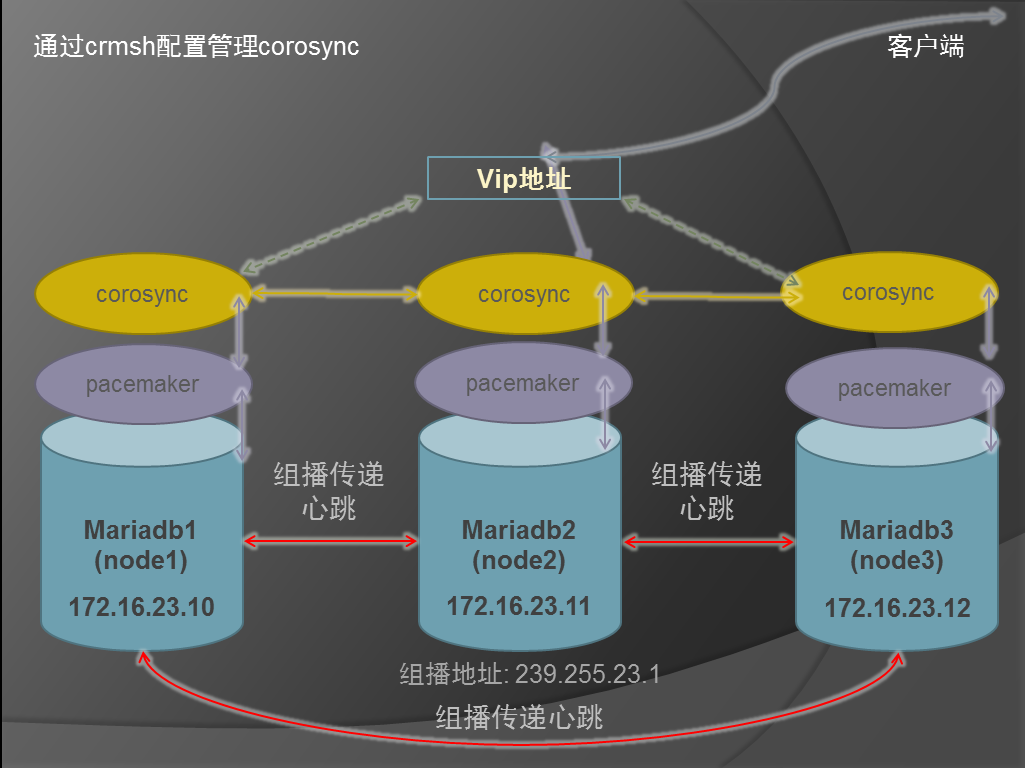

高可用mariadb拓扑图

一、设计前提

1、时间同步 # ntpdate 172.16.0.1 或者 # chronyc sources
2、所有的主机对应的IP地址解析可以正常工作， 主机名要与命令#uname -n 所得的结果一致

因此，/etc/hosts中的内容为以下内容

172.16.23.10 node1.rj.com node1
172.16.23.11 node2.rj.com node2
172.16.23.12 node3.rj.com node3

二、环境的建立及安装orosync ,pacemaker ,crmsh

三台机器都安装好ansible （对于ansible集群管理工具而言需要双机互信,其中node1当做堡垒机）

安装配置

# ssh-keygen
# for i in {10..12}; do ssh-copy-id -i 172.16.23.$i ; done ;
# 此条命令将公钥发送给三台机器，其中包括自己也就是堡垒机
# vim /etc/ansible/hosts
    [mariadb]
    172.16.23.10
    172.16.23.11
    172.16.23.12
# ansible mariadb -m ping
# 测试三台主机与堡垒机之间的连通性
# vim /etc/hosts 主机名解析配置
    172.16.23.10 node1.rj.com node1
    172.16.23.11 node2.rj.com node2
    172.16.23.12 node3.rj.com node3
# ansible mariadb -m command -a "ntpdate 172.16.0.1"  同步三台主机的时间
# ansible mariadb -m yum -a "name=pacemaker,mariadb-server state=present" 在三台主机上安装 mariadb ,corosync 和 pacemaker

    注：yum 安装pacemaker 的时候，其corosync也会自动安装上

corosync配置

# vim /etc/corosync/corosync.conf
加入以下信息
    totem {
        version: 2
        crypto_cipher: aes256
        crypto_hash: sha1
        interface {
            ringnumber: 0
            bindnetaddr: 172.16.0.0
            mcastaddr: 239.255.23.1
            mcastport: 5405
            ttl: 1
        }
    logging {
        fileline: off
        to_stderr: no
        to_logfile: yes
        logfile: /var/log/cluster/corosync.log
        to_syslog: no
        debug: off
        timestamp: on
        logger_subsys {
            subsys: QUORUM
            debug: off
        }
    quorum {
        provider: corosync_votequorum
        node {
            ring0_addr: node1.rj.com
            nodeid:1
        }
        node {
            ring0_addr: node2.rj.com
            nodeid:2
            }

        node {

ring0_addr: node3.rj.com
            nodeid:3
                }
        }

# corosync-keygen
# ansible mariadb -m copy -a "src=/etc/corosync/authkey dest=/etc/corosync/"
# ansible mariadb -m copy -a "src=/etc/corosync/corosync.conf dest=/etc/corosync/"
# ansible mariadb -m service -a "name=corosync state=persent"
# ansible mariadb -m service -a "name=pacemaker state=persent"
#  tcpdump -i eno16777736 -nn port 5405

抓包分析

使用tcpdump抓包工具可以来查看三台主机之间传递的心跳信息


注:mariadb在集群资源的配置中必需是开机自启动的
这样corosync才能实别其Unitfile 文件，而不能在配置前启动所以服务一定是关闭的

# ansible mariadb -m service -a "name=mariadb enabled=on"
# ansible mariadb -m service -a "name=corosync enabled=on"
# ansible mariadb -m service -a "name=pacemaker enabled=on"
# mkdir rpm && cd rpm
# wget 172.18.0.1/pub/Sources/7.x86_64/crmsh/crmsh-2.1.4-1.1.x86_64.rpm 下载crmsh及其所依赖的rpm包
# wget 172.18.0.1/pub/Sources/7.x86_64/crmsh/pssh*.rpm
# wget 172.18.0.1/pub/Sources/7.x86_64/crmsh/python-passh*.rpm
# ansible mariadb -m copy -a "src=/root/rpm dest=/root/"
# for i in {1..3}; do ssh node$i yum -y install /root/rpm/*; done

查看corosync引擎是否已经正常启动

# ansible mariadb -e command -a "grep -e 'Corosync Cluster Engine' -e 'configuration file' /var/log/messages"
Feb 13 11:27:35 node1 systemd: Stopped Corosync Cluster Engine.
Feb 13 14:08:03 node1 systemd: Starting Corosync Cluster Engine...
Feb 13 14:08:04 node1 corosync: Starting Corosync Cluster Engine (corosync): [  OK  ]
Feb 13 14:08:04 node1 systemd: Started Corosync Cluster Engine.
Feb 13 14:28:16 node1 systemd: Mounted NFSD configuration filesystem.
Feb 13 14:28:44 node1 smartd[787]: Opened configuration file /etc/smartmontools/smartd.conf
Feb 13 14:32:12 node1 systemd: Starting Corosync Cluster Engine...
            Feb 13 14:32:13 node1 corosync: Starting Corosync Cluster Engine (corosync): [  OK  ]
Feb 13 14:32:13 node1 systemd: Started Corosync Cluster Engine.
Feb 13 14:43:03 node1 systemd: Started Corosync Cluster Engine.

查看其成员之间的结点通知信息是否正常

# ansible mariadb -e command -a "grep TOTEM /var/log/messages"
查看启动过程中是否有错误信息产生
# ansible mariadb -e command -a "grep 'ERROR' /var/log/messages"
查看pacemaker是否已经正常启动
# ansible mariadb -e command -a "grep 'pacemaker' /var/log/messages "
 使用以下命令查看结点的状态
# crm status
Last updated: Mon Feb 13 15:43:08 2017
Last change: Mon Feb 13 14:33:58 2017 by hacluster via crmd on node3.rj.com
Stack: corosync        Current DC: node3.rj.com (version 1.1.13-10.el7-44eb2dd) - partition with quorum
3 nodes and 0 resources configured    Online: [ node1.rj.com node2.rj.com node3.rj.com ]

查看pacemaker 和与corosync所启动的进程

# ansible mariadb -m command -a "ps auxf " | grep pacemaker
root       1720  0.0  1.3 130484  6384 ?        Ss   14:33   0:00 /usr/sbin/pacemakerd -f
haclust+   1729  0.0  2.7 132816 13268 ?        Ss   14:33   0:01  \_ /usr/libexec/pacemaker/cib
root       1730  0.0  1.4 133968  6956 ?        Ss   14:33   0:00  \_ /usr/libexec/pacemaker/stonithd
root       1731  0.0  0.8 102936  4108 ?        Ss   14:33   0:00  \_ /usr/libexec/pacemaker/lrmd
haclust+   1732  0.0  1.3 124780  6736 ?        Ss   14:33   0:00  \_ /usr/libexec/pacemaker/attrd
haclust+   1733  0.0  0.7 114896  3668 ?        Ss   14:33   0:00  \_ /usr/libexec/pacemaker/pengine
haclust+   1734  0.0  1.5 143160  7484 ?        Ss   14:33   0:00  \_ /usr/libexec/pacemaker/crmd
# ansible marriadb -m command -a "ps auxf" | grep corosync
root       1483  0.6  7.9 134848 38436 ?        Ssl  14:32   0:28 corosync

三、利用crmsh来配置corosync的IP地址资源及mariadb资源

    如果想要查看某种类别下的所用资源代理的列表，可以使用类似以下的命令来实现

安装配置

#crm ra list lsb
#crm ra list ocf heartbeat
#crm ra list ocf pacemaker
#crm ra list ocf stonith

配置vip

 # crm configure property stonith-enabled=false #关闭stonsth设备

# crm configure primitive DBIP ocf:heartbeat:IPaddr params ip=172.16.23.23 添加vip资源代理
# crm configure verify 查看是否有错误
# crm configure commit 用来提交配置信息
# crm configure show  可以用来查看配置信息
    node 1: node1.rj.com
    node 2: node2.rj.com
    node 3: node3.rj.com
    primitive DBIP IPaddr \
        params ip=172.16.23.23
    property cib-bootstrap-options: \
        have-watchdog=false \
        dc-version=1.1.13-10.el7-44eb2dd \
        cluster-infrastructure=corosync \
        stonith-enabled=false

# crm node standby node1.rj.com    当将node1结点成为备用结点时

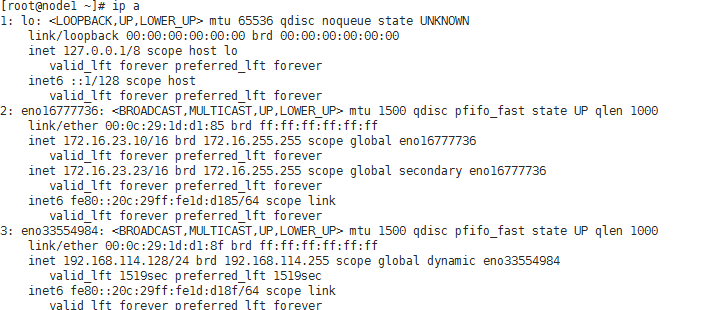

# ansible mariadb -m command -a "ip addr list" 查看其vip的变化信息
# crm ra info systemd:mairadb 用来查看systemd类型的mariadb资源的语法格式
    systemd unit file for mariadb (systemd:mariadb)
        MariaDB database server
    Operations' defaults (advisory minimum):
        start         timeout=15
        stop          timeout=15
        status        timeout=15
        restart       timeout=15
        monitor       timeout=15 interval=15 start-delay=15

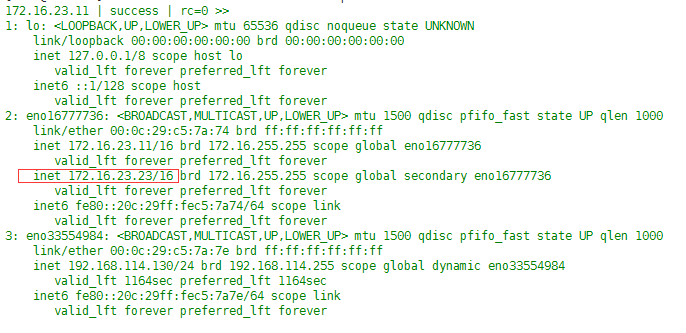

vip资源

当node1 # crm node standby node1.rj.com 时

定义mariadbg资源并设定监控

# crm configure primitive MDB systemd:mariadb op start timeout=15s op stop timeout=15s op monitor interval=15s timeout=15s
# crm configure group DBservice DBIP MDB
# crm configure verify
# crm configure commit
# crm configure show
    node 1: node1.rj.com \
        attributes standby=on
    node 2: node2.rj.com \
        attributes standby=off
    node 3: node3.rj.com \
        attributes standby=off
    primitive DBIP IPaddr \
        params ip=172.16.23.23
    primitive MDB systemd:mariadb \
        op start timeout=15s interval=0 \
        op stop timeout=15s interval=0 \
        op monitor interval=15s timeout=15s
    group DBservice DBIP MDB
    property cib-bootstrap-options: \
        have-watchdog=false \
        dc-version=1.1.13-10.el7-44eb2dd \
        cluster-infrastructure=corosync \
        stonith-enabled=false \
        no-quorum-policy=ignore

    为mariadb服务加入数据库资源，并配置远程用户远程接入进行测试

注：此时有一个资源已经启动，但其它的两个mariadb服务启动之后才能进行对数据库的更改

           但更改完后旋得再将那两个结点的数据库停止调

node1 node2 node3上执行: #  mysql -e "GRANT ALL  ON *.* TO 'root'@'%.%.%.%' IDENTIFIED BY 'centos.123';"
node1 # mysql -e "CREATE DATABASE NODE1"
node2 # mysql -e "CREATE DATABASE NODE2"
node3 # mysql -e "CREATE DATABASE NODE3"

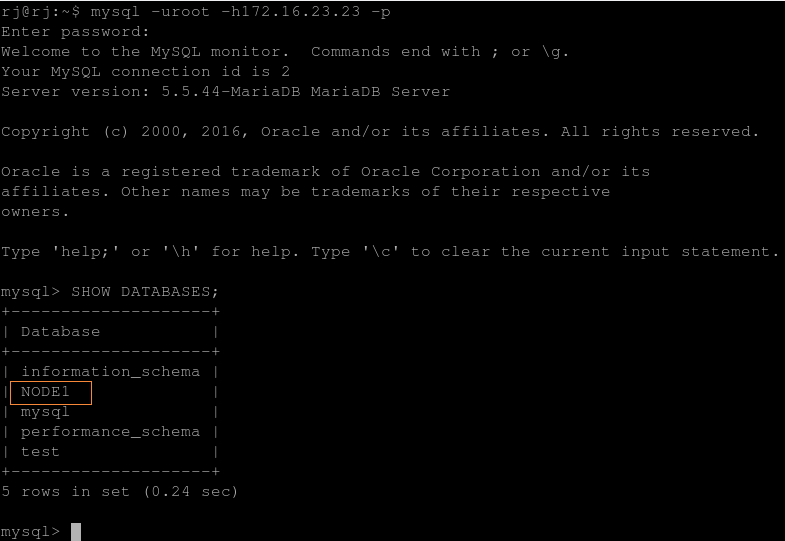

启用一台测试机进行测试

node1

# systemctl stop corosync.service pacemaker.service

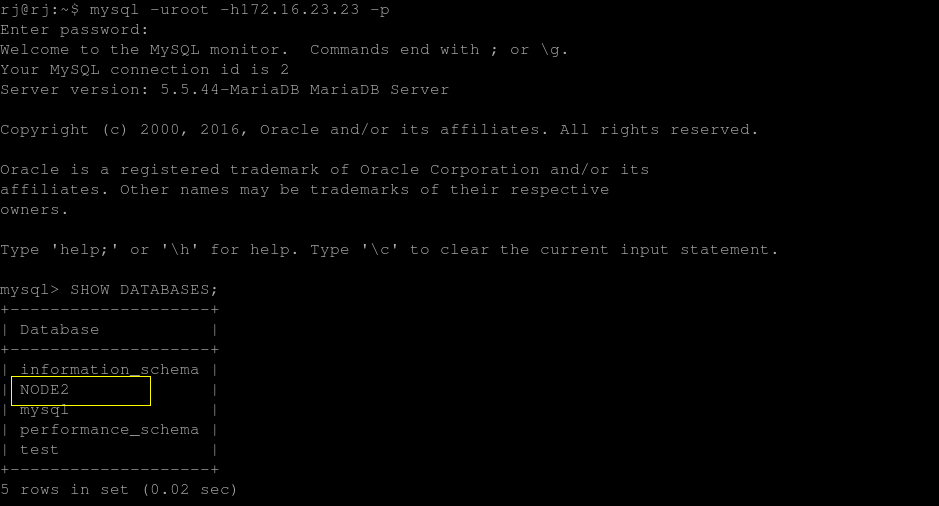

# 当node1的服务停止时


    # systemctl stop corosync.service pacemaker.service

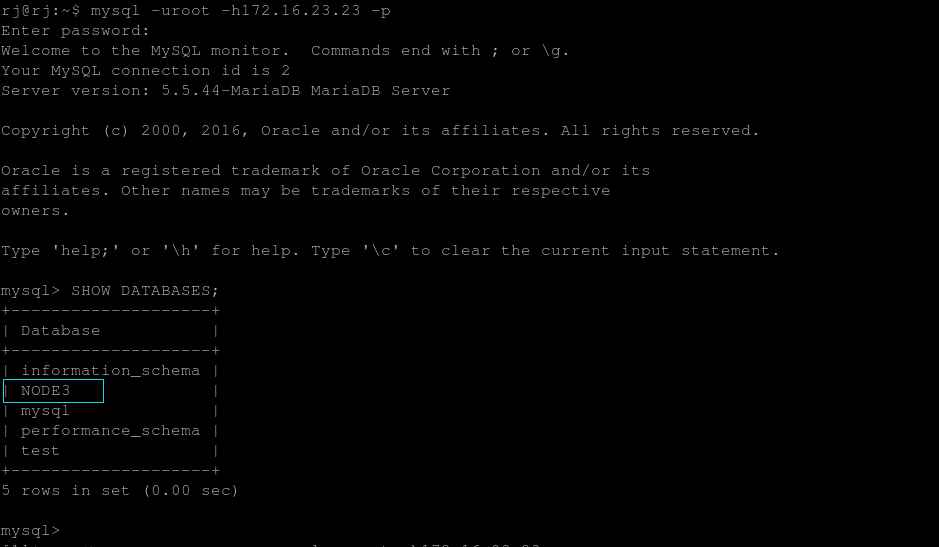

    # 当node2的服务停止时
